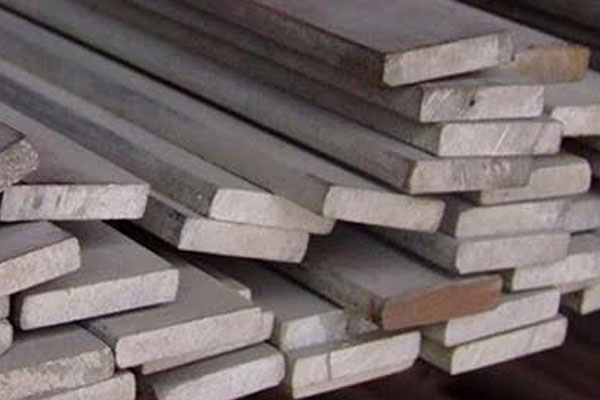

Flat Bars
As one of the pioneers in manufacturing Flat bars, Bamlia provides you with the best quality mild steel flats across different sections and length cut to size as per requirement. From bulk orders to single orders the team at Bamlia masters the art of manufacturing personalised sizes and lengths of Mild Steel Flat Bars. It is this consistent quality inspection and timely delivery that makes Bamlia a leader in the Steel Flat Bar industry.
Our Flat Bars can be drilled, welded, bent, machined or cut to suit various industries where Steel Flats are used.
The entire range of our most common size is mentioned below. Yet we are not limited to these sizes and offer manufacturing of different sizes as required by the customer:
| Sizes | Section Weight per Meter |
| 12mm * 3mm | 0.283 kgs |
| 12mm * 6mm | 0.565 kgs |
| 17mm * 4mm | 0.534 kgs |
| 19mm * 3mm | 0.447 kgs |
| 25mm * 3mm | 0.589 kgs |
| 30mm * 3mm | 0.706 kgs |
| 38mm * 3mm | 0.895kgs |
| 18mm * 5mm | 0.706 kgs |
| 19mm * 6mm | 0.895 kgs |
| 20mm * 6mm | 0.942 kgs |
| 25mm * 5mm | 0.981 kgs |
| 25mm * 6mm | 1.178 kgs |
| 30mm * 5mm | 1.178 kgs |
| 32mm * 6mm | 1.507 kgs |
| 35mm * 5mm | 1.374 kgs |
| 40mm * 6mm | 1.884 kgs |
| 50mm * 6mm | 2.355 kgs |
| 25mm * 10mm | 1.766 kgs |
| 25mm * 12mm | 2.355 kgs |
| 38mm * 12mm | 3.58 kgs |
Element Content (in percentage)
| Carbon |
0.25 (max) |
|---|---|
| Silicon |
0.40 (max) |
| Manganese |
0.60 (max) |
| Phosphorus |
0.04 (max) |
Mechanical properties
| Yield |
Stress |
|---|---|
| (N/mm2) MIN |
240 |
| Elongation (MIN) |
23 |
| Tensile |
Strength |
| (N/mm2) MIN |
410 |
